Author Topic: Winchester Ranger 180gr JHP Subsonic Pulldown  (Read 783 times)

RDub01

  • Jr. Member
  • **
  • Posts: 101
    • View Profile
Winchester Ranger 180gr JHP Subsonic Pulldown
« on: May 16, 2016, 09:16:28 AM »

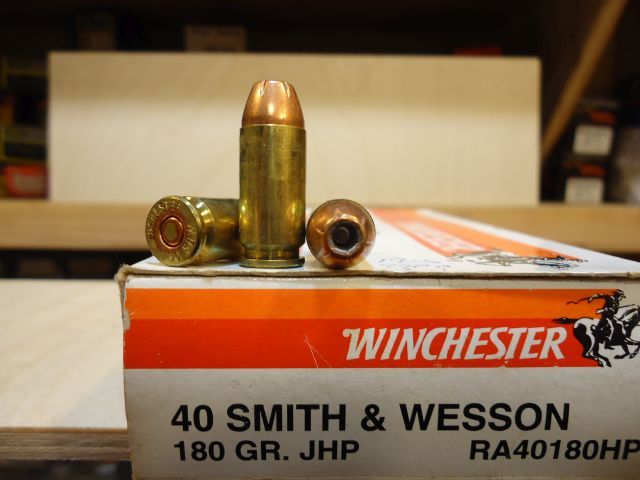

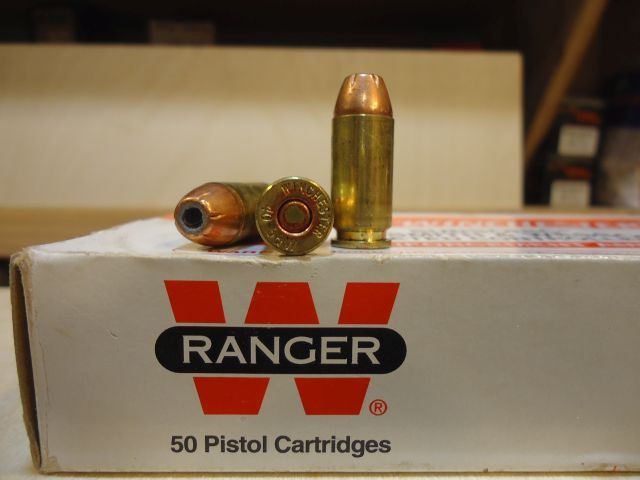

Cartridge is from Ammo Manufacture: Winchester Ranger 180gr JHP Subsonic

http://winchesterle.com/Products/handgun-ammunition/ranger/jhp-ranger/Pages/ra40180hp.aspx

Muzzle Velocity; Advertised:  1012 fps
Actual Instrumental Velocity:  973 fps – 26 fps ES  Fired from a Sigma 40F
Muzzle Energy; Advertised:  412 ft. lbs.
Brass Make/Head stamp:  Winchester 40 S&W

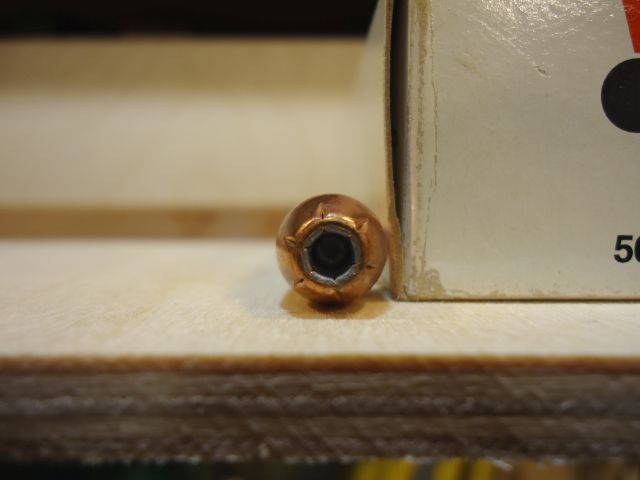

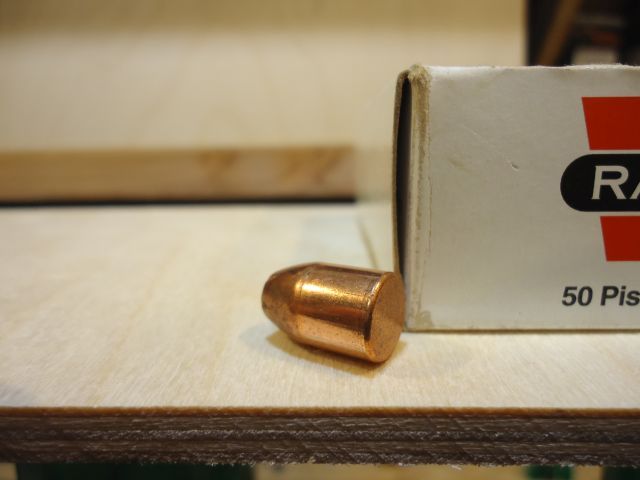

Bullet Make/Weight/Construction/Info: Winchester 180gr JHP  .4003” dia;  .634” long

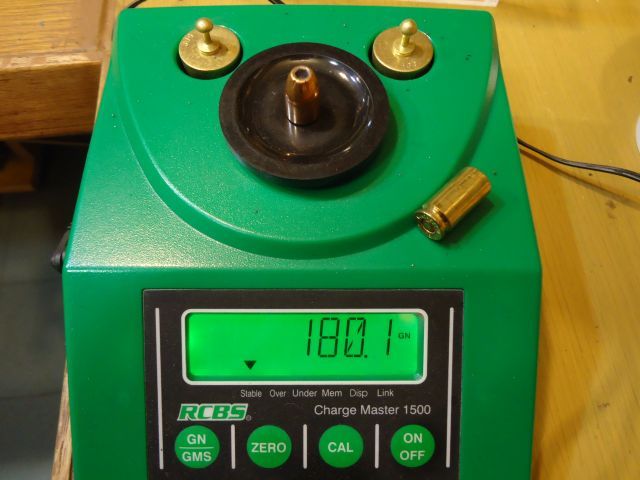

Actual Weight: 180.1 grs.
Crimp diameter:  .4215”
C.O.A.L.:  1.128”
Primer: Winchester brass color
Case: Brass

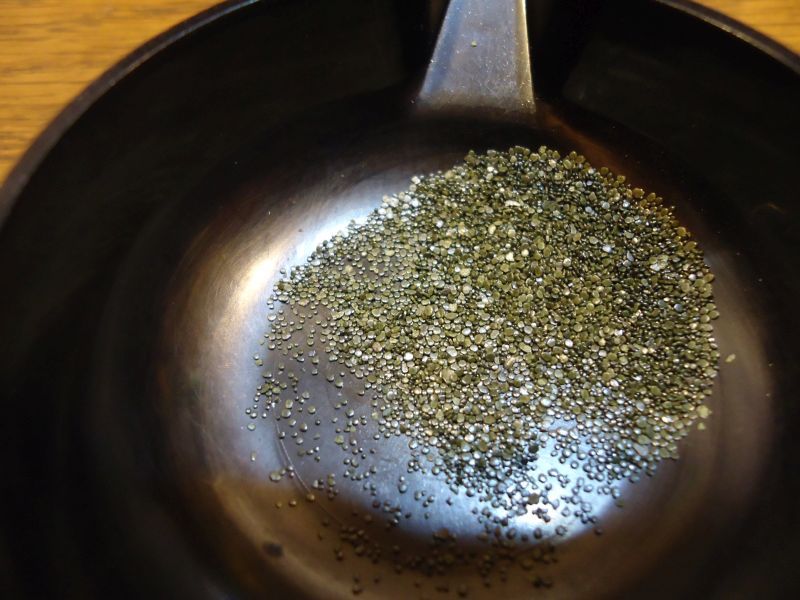

Powder Description/Positive ID/Type/Charge Weight: Small flattened ball; 6.4grs.

Target 25 yards;  5½” circle.
































The_Shadow

  • Moderator
  • Sharpshooter
  • *****
  • Posts: 7282
    • View Profile
Re: Winchester Ranger 180gr JHP Subsonic Pulldown
« Reply #1 on: May 16, 2016, 09:51:33 AM »
I have to wonder if it is Winchester Action Pistol which is the same as RamShot Silhouette? ???
The 6.4 grain load would be a close fit for the actual velocity...
The "10mm" I'm Packin', Has The Bullets Wackin', Smakin' & The Slide is Rackin' & Jackin'!
NRA Life Member
Southeast, LoUiSiAna

RDub01

  • Jr. Member
  • **
  • Posts: 101
    • View Profile
Re: Winchester Ranger 180gr JHP Subsonic Pulldown
« Reply #2 on: May 16, 2016, 10:24:23 AM »
Well, now that you mention that..




I shot a group with 6.5grs Silhouette with those pulled Fed bullets I was talking about.  It's in the ballpark..

The_Shadow

  • Moderator
  • Sharpshooter
  • *****
  • Posts: 7282
    • View Profile
Re: Winchester Ranger 180gr JHP Subsonic Pulldown
« Reply #3 on: May 16, 2016, 10:48:37 AM »
Yep...Great pull down too.  That's close enough performance wise!  I have to wonder if Winchester had more graphite coatings on the Action Pistol (seems darker most of the time) than the Ramshot Silhouette which seems to show lighter color tones.

Got to love when the data matches up.
